Sime Ambo Sprinkler

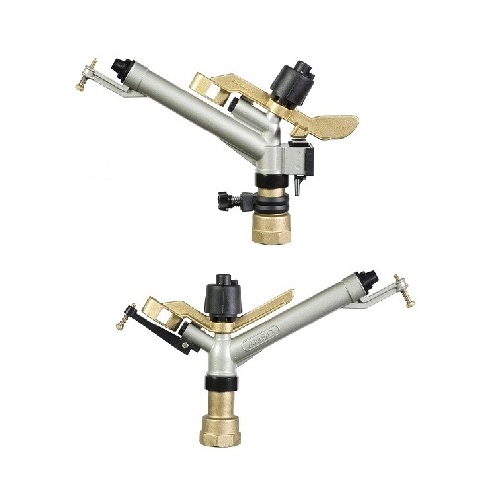

The Sime Ambo Impact Drive Sprinkler is constructed with adjustable stops for full or part circle coverage and contains an adjustable jet breaker for changes in stream pattern. The Ambo's water flow ranges from 20-107 gallons per minute and covers an area up to 190 feet in diameter! A Quick change nozzle setup and heavy aluminum construction compliment the brass lower turning union with a 1.5 inch female standard pipe thread connection. In addition, the Ambo Sprinkler features a unique drive arm that is shorter than most sprinklers of similar size and drives off of a smaller secondary nozzle positioned on top of the main barrel. This allows the main stream of water from the primary nozzle to gain ultimate distance without being affected by the drive arm motion. Also, the Ambo Sprinkler has a slower reversing motion than most impacts. It works well under lower pressures especially when utilizing the jet breaker to diffuse the main nozzle pattern.

General Information

Specifications:

Flow Range: 20-107 gal/min.,  Coverage:  Up to 190’ Diameter, Construction:  Aluminum w/ Brass Lower Turning Union, Trajectory: 30⁰, Inlet Size: 1.5” Standard Pipe Thread, Jet Stream Breaker, Nozzle Size Included:  6 mm Drive Stream + 8 mm, 10 mm, 12 mm, 14 mm, & 16 mm Main Stream
